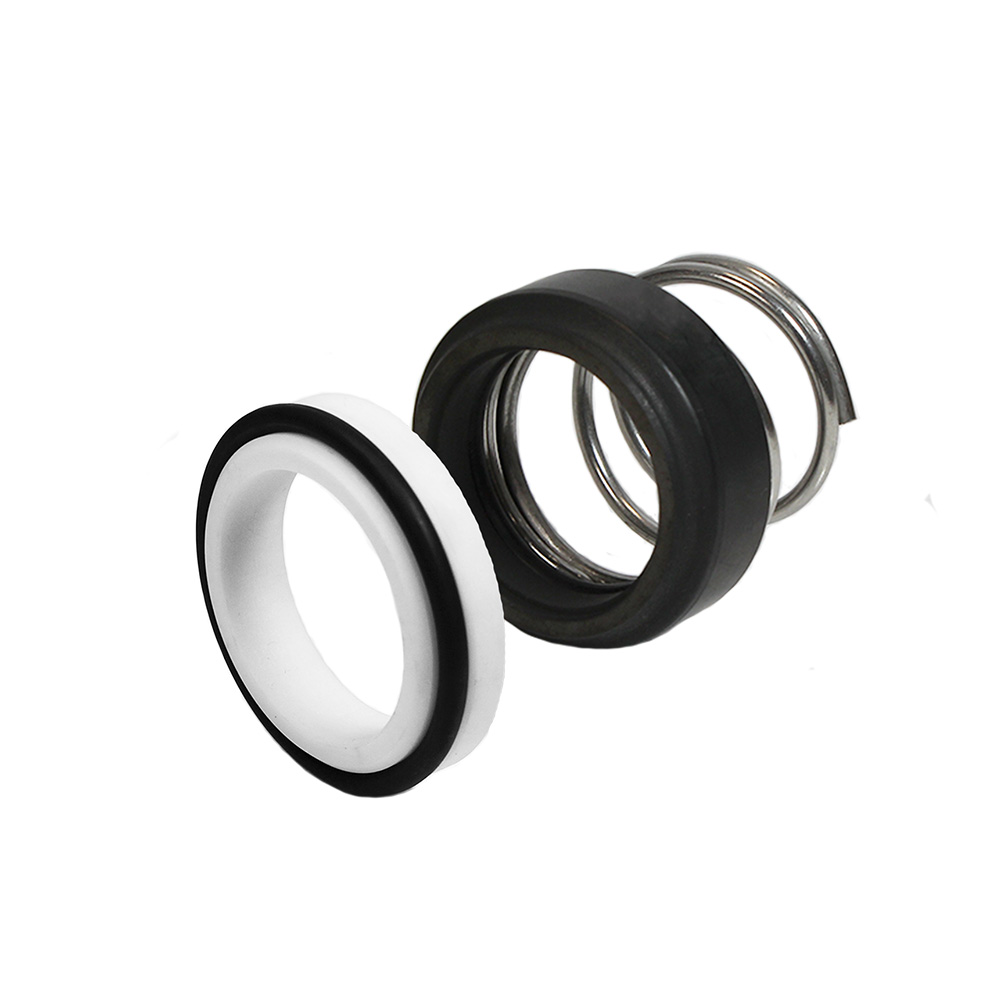

Conical 'O'-Ring Mounted Mechanical Seals

Experience unparalleled axial and angular flexibility with our state-of-the-art design. The seal’s design compensates for misalignment and machinery tolerances. It is non-clogging due to the large single spring and the unrestricted movement of the elastomer. Our rubber shaft seal effectively combats failures caused by pesky material build-up.

These seals redefine convenience with their self-adjusting nature and dependence on direction. With minimal moving parts, they are not only highly efficient but also remarkably cost-effective. Their compact and versatile design ensures effortless installation, fitting seamlessly into all common imperial, metric, and DIN 24960 (EN12756) housings as a standard offering.

Our conical spring ‘o’-ring seals are:
• Robust and effective; suitable for clogging media and hygienic applications
• Technically efficient
• Customisable to any working length and seat housing dimensions
• Self-aligning
• Reliable and durable, giving highly effective performance



-

Type 8

Type 8

Conical spring, ‘O’-Ring mounted, shaft directional dependent Mechanical Seal with inserted seal face. Very similar to Type 8DINS but with a stationary to suit common European non-DIN housings.

Type 8DIN / 8DINS

Type 8DIN / 8DINS

Conical spring, ‘O’-Ring mounted, shaft directional dependent Mechanical Seal with inserted seal face and stationary seal to suit DIN housings.

Type 82 / 82S

Type 82 / 82S

Conical spring, ‘O’-Ring mounted, stepped-shaft, balanced, shaft directional dependent Mechanical Seal.

Type 7D

Type 7D

Resilient, conical spring, ‘O’-Ring mounted, shaft directional dependent Mechanical Seal with a stationary to suit DIN housings. The ‘O’-Ring mounted seal face offers enhanced versatility and performance.

Type 9

Type 9

Conical spring, ‘O’-Ring mounted, shaft directional dependent Mechanical Seal, with a monolithic rotary head. Supplied as standard with Type 8 STD stationary to suit European non-DIN housing sizes.

Type 12

Type 12

Conical spring, ‘O’-Ring mounted, shaft directional dependent Mechanical Seal with a solid stainless steel head and carbon stationary.

Type 12DIN

Type 12DIN

Conical spring, ‘O’-Ring mounted, shaft directional dependent Mechanical Seal.

Type 126

Type 126

Conical spring, ‘O’-Ring mounted, shaft directional dependent Mechanical Seal.

Type 13

Type 13

Conical spring, ‘O’-Ring mounted, shaft directional dependent Mechanical Seal with pressed stainless steel head retainer and ‘O’-Ring mounted seal and stationary faces.

Type 13DIN

Type 13DIN

Conical spring, ‘O’-Ring mounted, shaft directional dependent Mechanical Seal with pressed stainless steel head retainer and ‘O’-Ring mounted seal and stationary faces.
