Multiple Spring Mechanical Seals

This exceptional range of seals has been specifically designed to withstand the most challenging industrial duties, particularly in the chemical industry. To ensure unmatched performance, we have incorporated multiple phenolic resin impregnated Carbon materials (VCT1) as the standard choice for this range.

The multiple spring seals require less axial length to provide the required face closing forces, allowing for shorter seal working length designs. Unlike larger single spring designs, they exhibit minimal distortion at high speeds. This results in a consistently even closing face pressure on the seal ring, ensuring optimal sealing performance at all times.

Our multiple spring seals have:
• Improved design
• No awkward setting pieces
• Improved face loading values
• Superior material quality
• Improved reliability



-

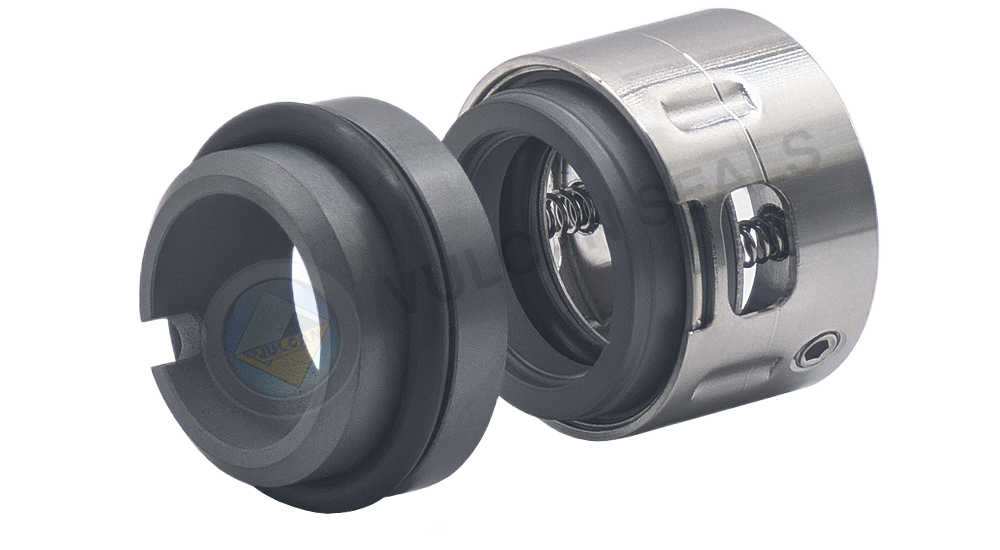

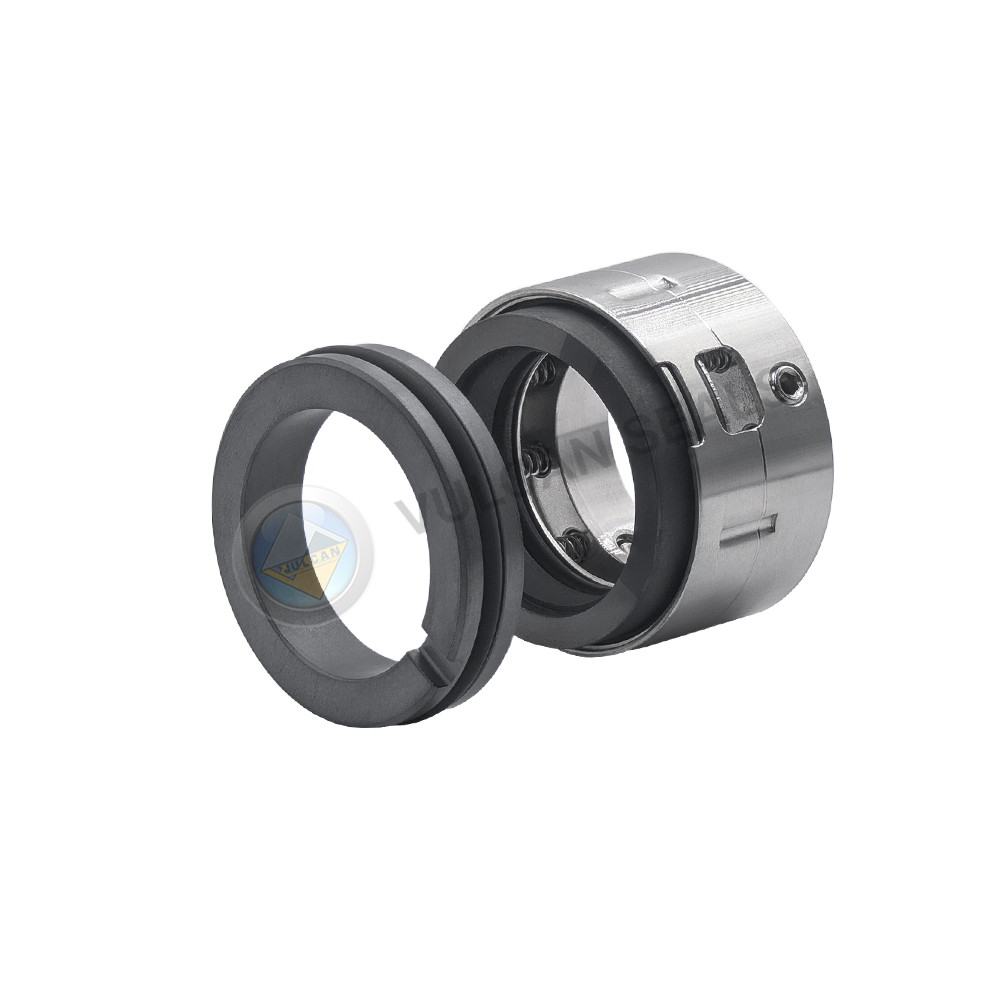

Type 1609/1609S

Type 1609/1609S

Internal multiple spring Mechanical Seal available with chemically resilient PTFE wedge (Type 1609) or with 'O'-Ring (Type 1609S) secondary seal.

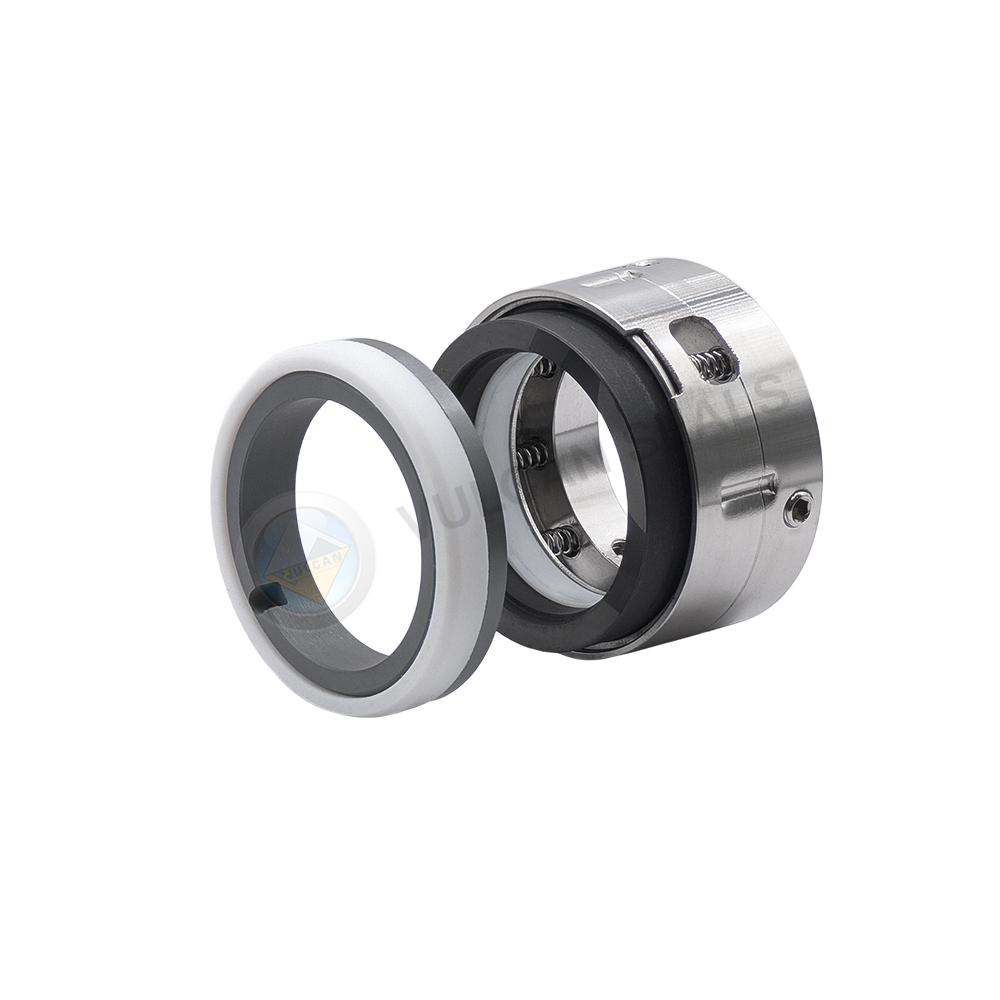

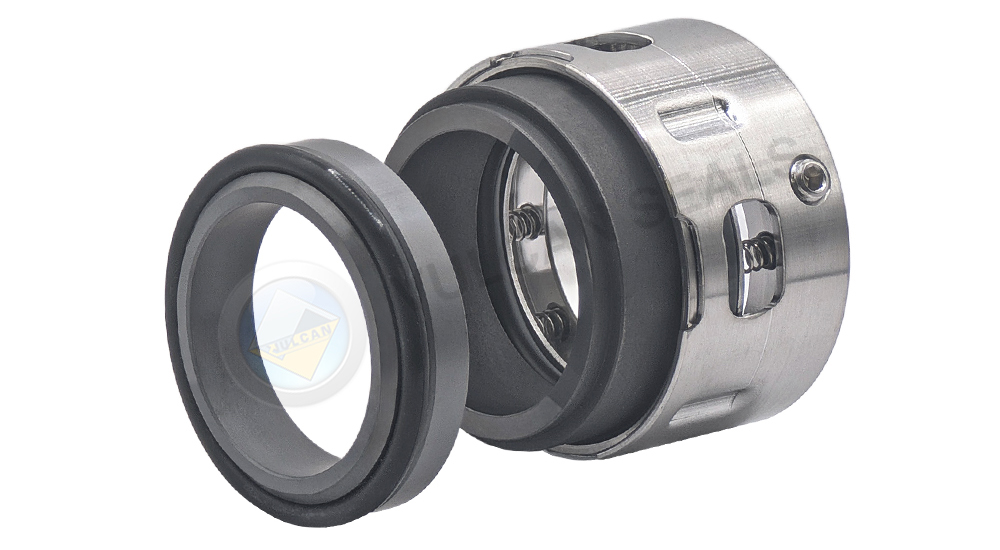

Type 1609B/1609BS

Type 1609B/1609BS

Internal multiple spring Mechanical Seal to suit balanced stepped shafts, available with chemically resilient PTFE wedge (Type 1609) or with 'O'-Ring (Type 1609S) secondary seal.

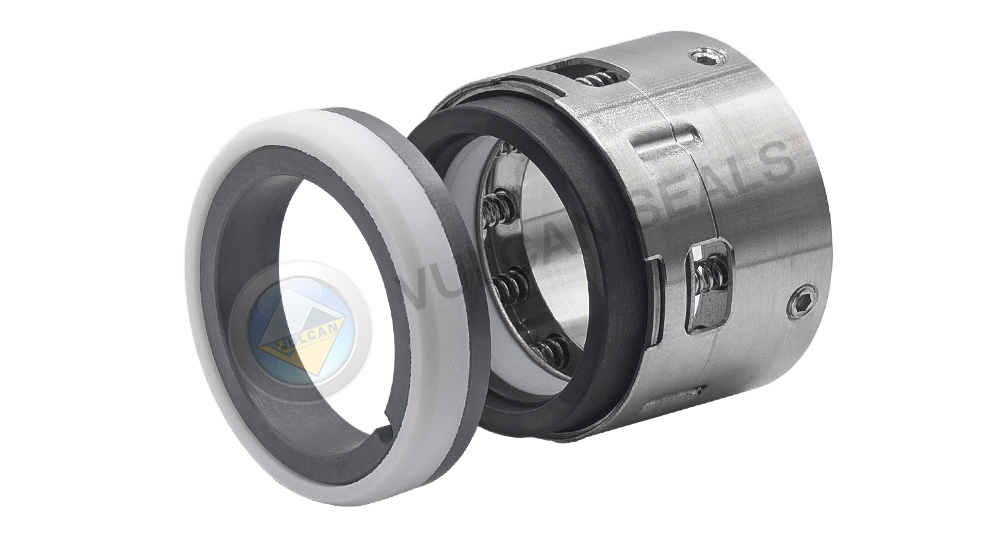

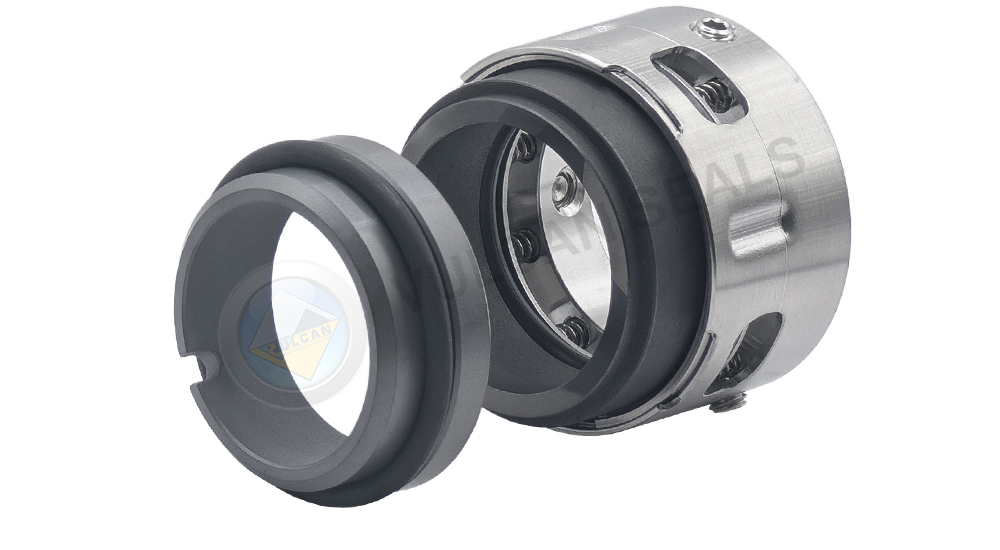

Type 1645/1645S

Type 1645/1645S

Internal multiple spring Seal available with chemically resilient PTFE wedge (Type 1645) or with 'O'-Ring (Type 1645S) secondary seal. Designed to conform to ANSI B 73 fitting dimensions.

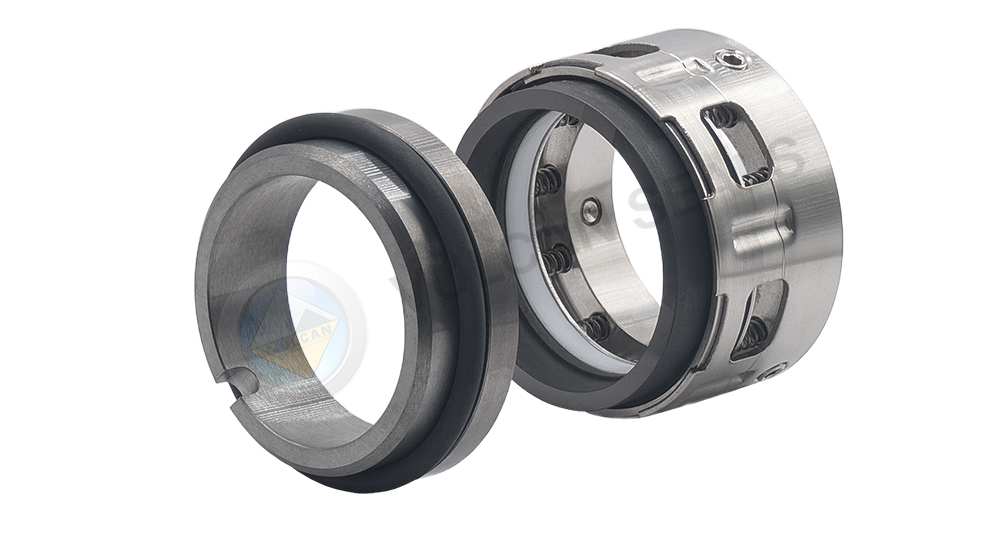

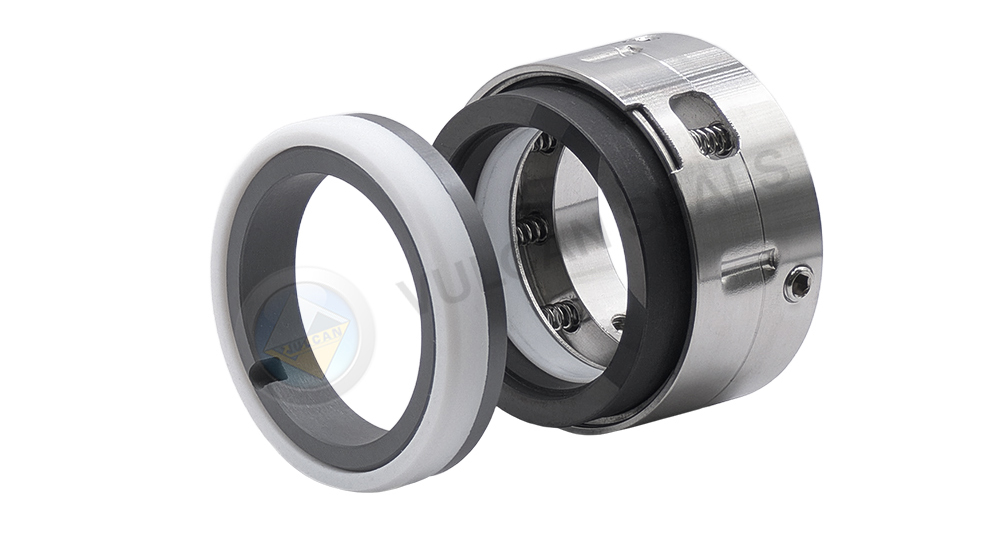

Type 1645B/1645BS

Type 1645B/1645BS

Internal multiple spring Mechanical Seal to suit balanced stepped shafts, available with chemically resilient PTFE wedge (Type 1645B) or with 'O'-Ring (Type 1645BS) secondary seal. Designed to conform to ANSI B73 fitting dimensions.

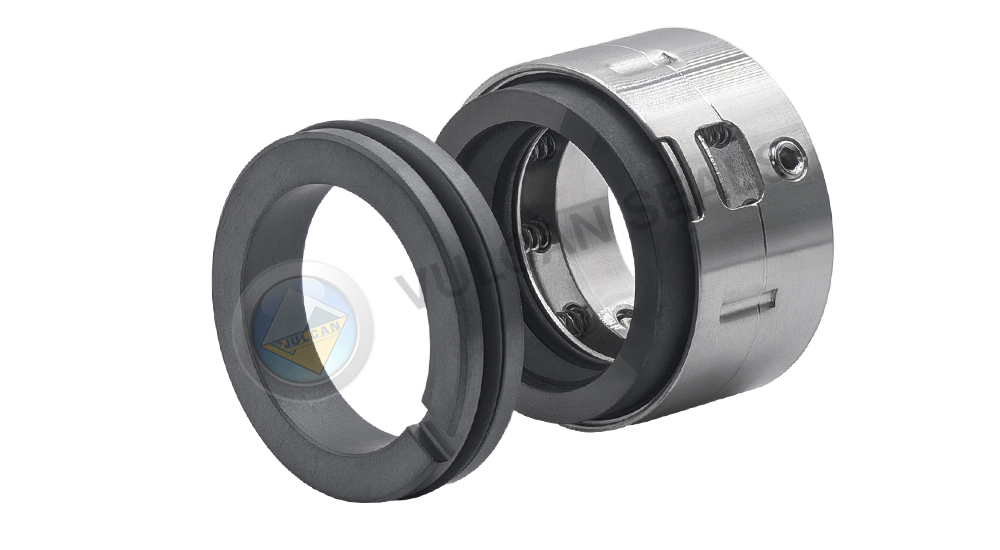

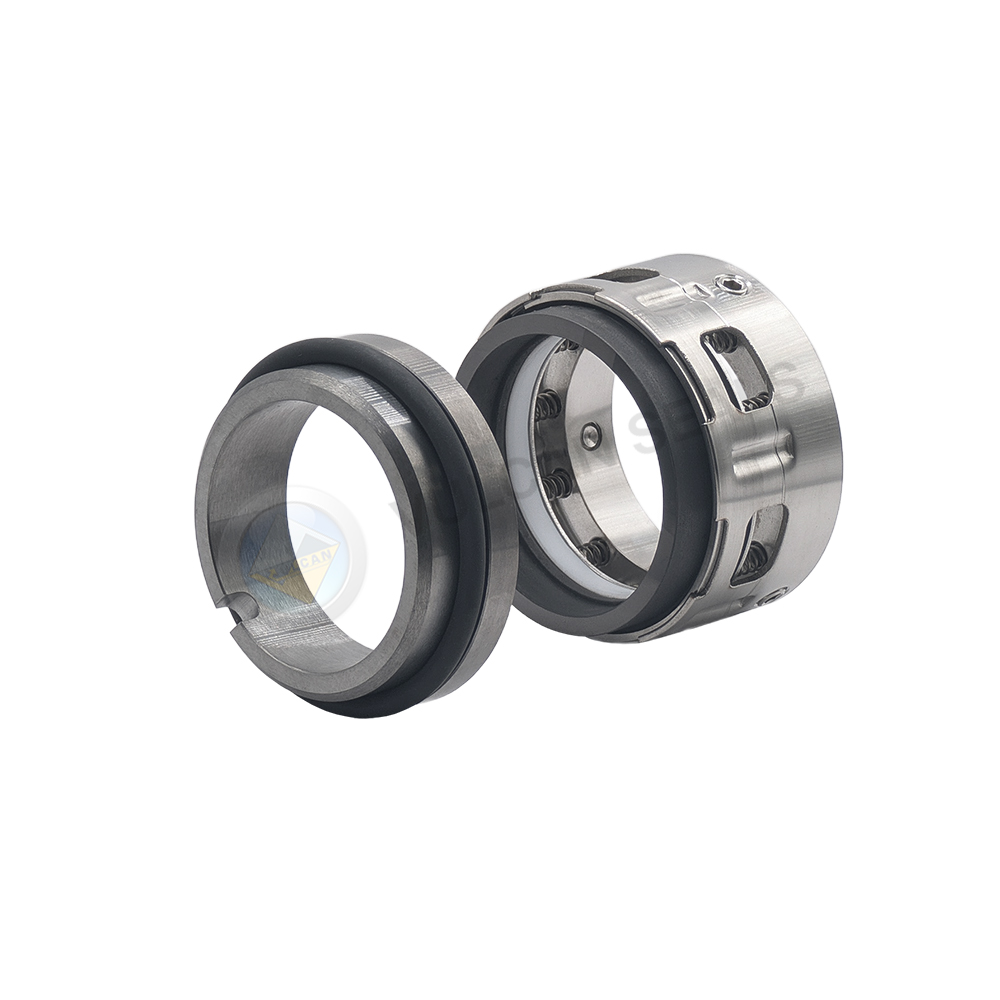

Type 1659/1659S

Type 1659/1659S

Internal multiple spring Mechanical Seal available with chemically resilient PTFE wedge (Type 1609) or with 'O'-Ring (Type 1609S) secondary seal. Designed to conform to DIN 24960 fitting dimensions.

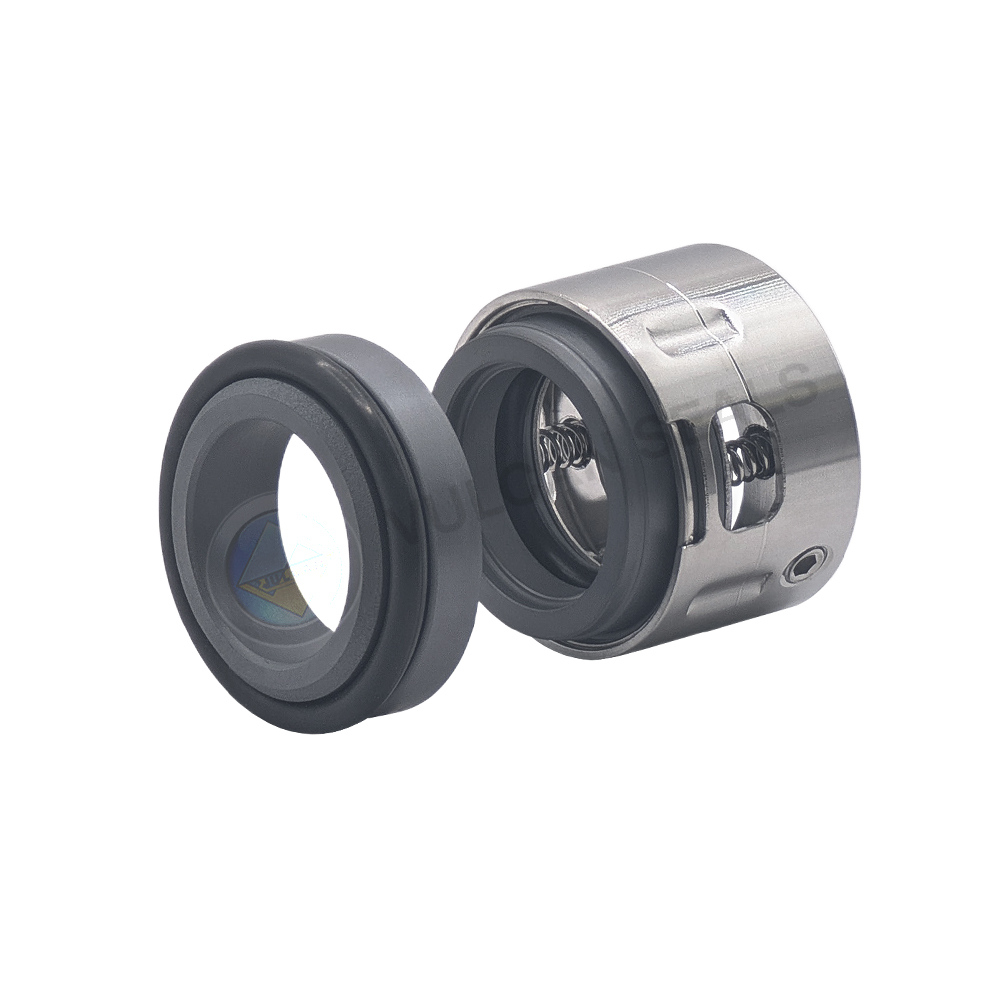

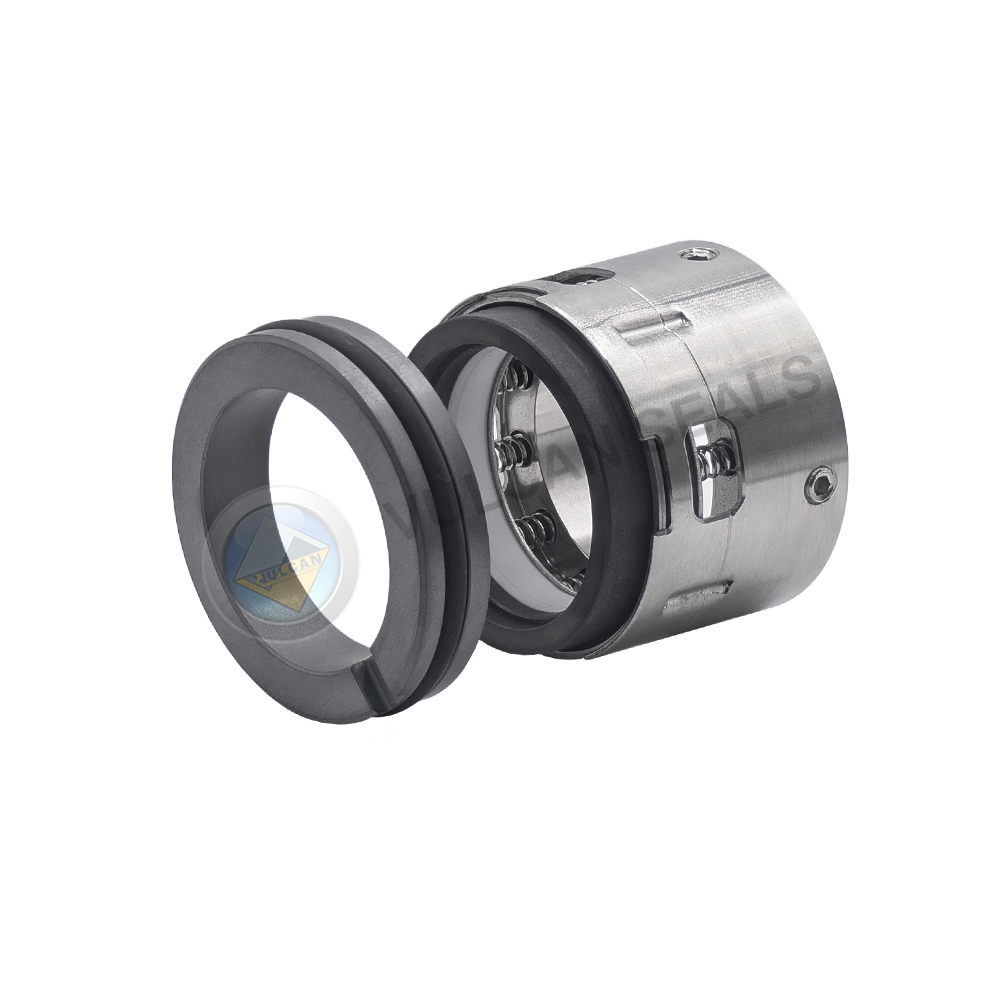

Type 1659B/1659BS

Type 1659B/1659BS

Internal multiple spring Mechanical Seal to suit balanced stepped shafts, available with chemically resilient PTFE wedge (Type 1659) or with 'O'-Ring (Type 1659S) secondary seal. Designed to conform to DIN 24960 fitting dimensions.

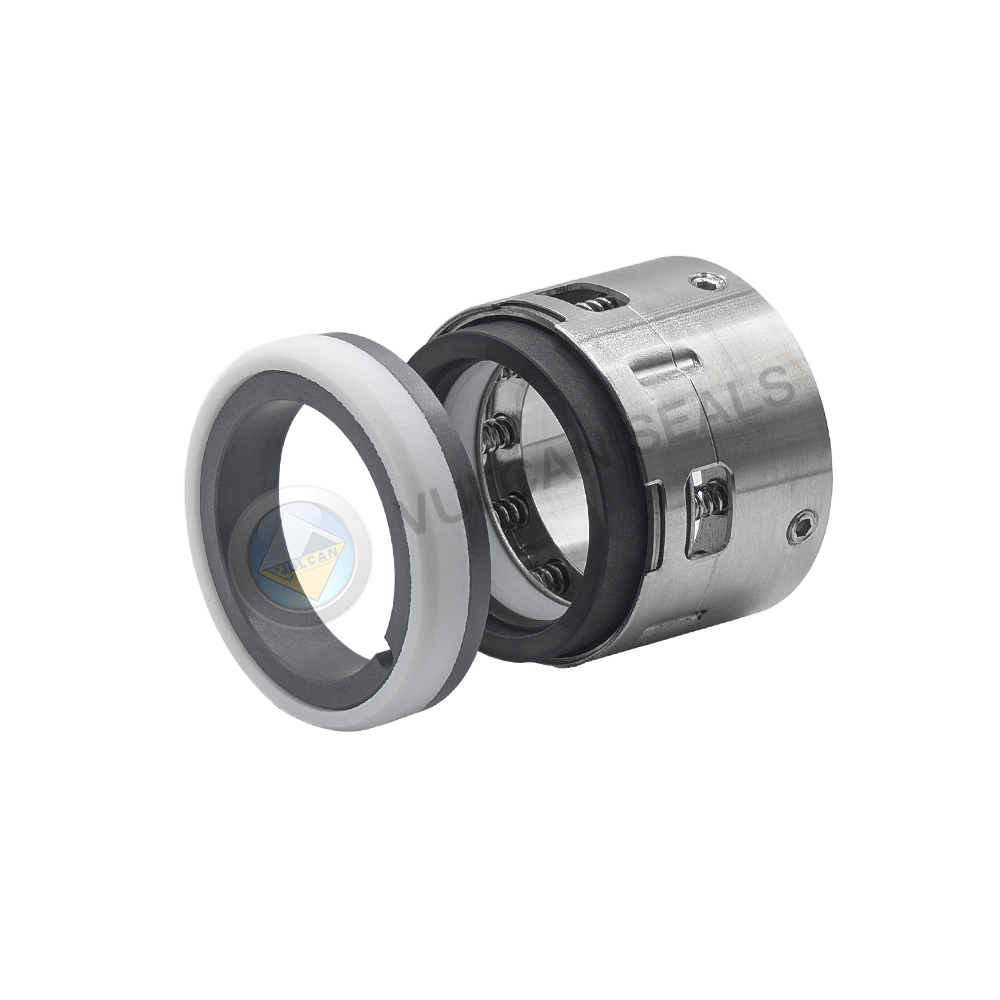

Type 40

Type 40

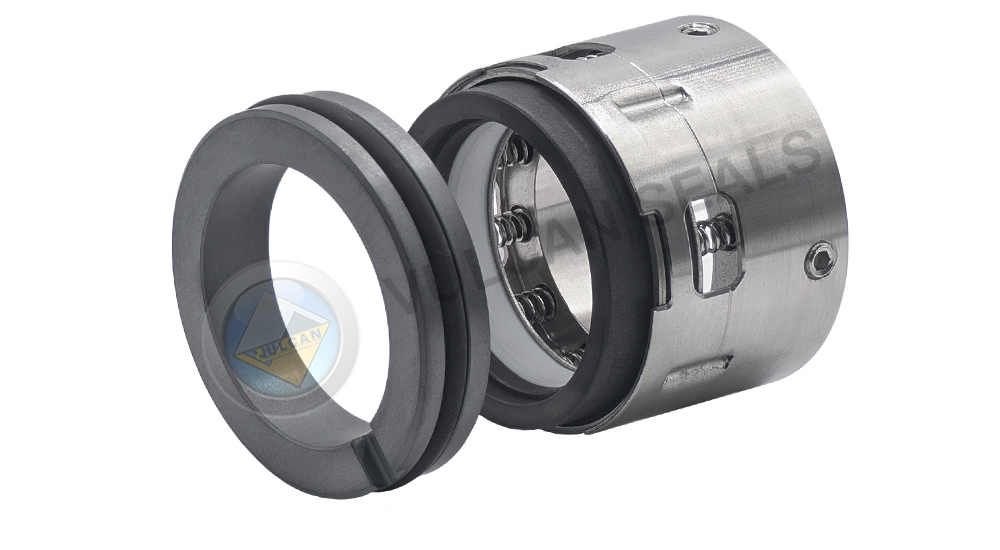

Type 52B

Type 52B

External 4 bolt, balanced Cartridge Seal. A cost effective general Cartridge Mechanical Seal, featuring advanced design features and exceptional performance, whilst reducing fitting error and lowering maintenance costs.

Type 56B

Type 56B

External 4 bolt, balanced Cartridge Mechanical Seal, with dual environmental controls. A cost effective general Cartridge Seal, exceptional design features and performance, whilst reducing fitting error and lowering maintenance costs.

Type 55B

Type 55B

External 2 bolt, balanced Cartridge Mechanical Seal, with dual tangential environmental controls. The 55B is an excellent Gland Packing replacement that will fit majority of equipment, and removes potential for fitting error.
