Technical Data Sheet

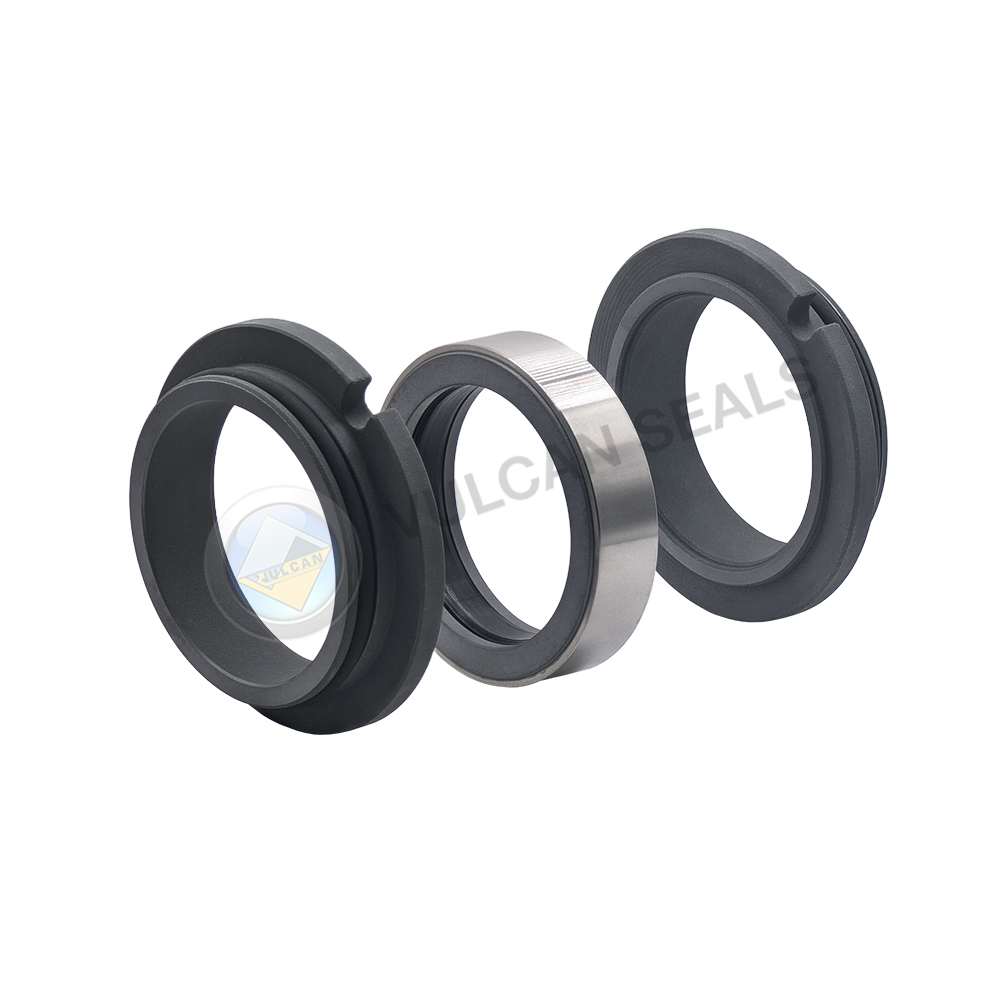

The Vulcan Seals Type 191 Wilo® range is two sizes of elastomeric bellows seals with boot-mounted stationaries to suit common Wilo® centrifugal pumps, utilized in heating circulation applications.
Vulcan Seals stocks the brass shaft sleeves the Vulcan Seals Type 191 Wilo® seals are mounted onto, and gasket sets for the 32mm size pumps are also available.
We also offer other standard range seals, such as 17mm Type 19B, and 18mm, 24mm, or 32mm Type 192B seals, to suit Wilo® pumps.
| DØ (Metric) | Size Code | D1 | D4 | DINS L1 | DINL L2 | DINL Slot Width | DINL Slot Depth |
|---|---|---|---|---|---|---|---|
| 10 | 0100 | 21.00 | 16.42 | 6.60 | 10.00 | 4.00 | 5.00 |
| 12 | 0120 | 23.00 | 18.42 | 6.60 | 10.00 | 4.00 | 5.00 |
| 14 | 0140 | 25.00 | 20.42 | 6.60 | 10.00 | 4.00 | 5.00 |
| 16 | 0160 | 27.00 | 22.42 | 6.60 | 10.00 | 4.00 | 5.00 |
| 18 | 0180 | 33.00 | 26.6 | 7.50 | 11.50 | 4.00 | 5.50 |
| 20 | 0200 | 35.00 | 28.6 | 7.50 | 11.50 | 4.00 | 5.50 |
| 22 | 0220 | 37.00 | 30.6 | 7.50 | 11.50 | 4.00 | 5.50 |
| 24 | 0240 | 39.00 | 32.6 | 7.50 | 11.50 | 4.00 | 5.50 |
| 25 | 0250 | 40.00 | 33.6 | 7.50 | 11.50 | 4.00 | 5.50 |
| 28 | 0280 | 43.00 | 36.6 | 7.50 | 11.50 | 4.00 | 5.50 |
| 30 | 0300 | 45.00 | 38.6 | 7.50 | 11.50 | 4.00 | 5.50 |
| 32 | 0320 | 48.00 | 41.6 | 7.50 | 11.50 | 4.00 | 5.50 |
| 33 | 0330 | 48.00 | 41.6 | 7.50 | 11.50 | 4.00 | 5.50 |
| 35 | 0350 | 50.00 | 43.8 | 7.50 | 11.50 | 4.00 | 5.50 |
| 38 | 0380 | 56.00 | 48.8 | 9.00 | 14.00 | 5.00 | 5.50 |
| 40 | 0400 | 58.00 | 50.8 | 9.00 | 14.00 | 5.00 | 5.50 |
| 43 | 0430 | 61.00 | 53.8 | 9.00 | 14.00 | 5.00 | 5.50 |
| 45 | 0450 | 63.00 | 55.8 | 9.00 | 14.00 | 5.00 | 5.50 |
| 48 | 0480 | 66.00 | 58.8 | 9.00 | 14.00 | 5.00 | 5.50 |
| 50 | 0500 | 70.00 | 61.25 | 9.50 | 15.00 | 5.00 | 5.50 |
| 53 | 0530 | 73.00 | 64.25 | 11.00 | 15.00 | 5.00 | 5.50 |
| 55 | 0550 | 75.00 | 66.25 | 11.00 | 15.00 | 5.00 | 5.50 |
| 58 | 0580 | 78.00 | 69.25 | 11.00 | 15.00 | 5.00 | 5.50 |
| 60 | 0600 | 80.00 | 71.25 | 11.00 | 15.00 | 5.00 | 5.50 |
| 63 | 0630 | 83.00 | 74.25 | 11.00 | 15.00 | 5.00 | 5.50 |
| 65 | 0650 | 85.00 | 76.25 | 11.00 | 15.00 | 5.00 | 5.50 |
| 68 | 0680 | 90.00 | 80.5 | 11.30 | 18.00 | 5.00 | 5.50 |
| 70 | 0700 | 92.00 | 82.6 | 11.30 | 18.00 | 5.00 | 5.50 |
| 75 | 0750 | 97.00 | 87.6 | 11.30 | 18.00 | 5.00 | 5.50 |
| 80 | 0800 | 105.00 | 94.7 | 12.00 | 18.20 | 5.00 | 5.50 |
| 85 | 0850 | 110.00 | 99.7 | 14.00 | 18.20 | 5.00 | 5.50 |
| 90 | 0900 | 115.00 | 104.7 | 14.00 | 18.20 | 5.00 | 5.50 |
| 95 | 0950 | 120.00 | 109.7 | 14.00 | 17.20 | 5.00 | 5.50 |
| 100 | 1000 | 125.00 | 114.7 | 14.00 | 17.20 | 5.00 | 5.50 |
| DØ (Imperial) | DØ (Metric) | Size Code | D3 | L1 | No of Set Screws | ||
|---|---|---|---|---|---|---|---|
| in | mm | in | mm | ||||
| 0.375 | 0095 | 0.748 | 19.00 | 0.295 | 7.50 | 3 x 120° | |
| 10 | 0100 | 0.748 | 19.00 | 0.295 | 7.50 | 3 x 120° | |
| 12 | 0120 | 0.827 | 21.00 | 0.295 | 7.50 | 3 x 120° | |
| 0.5 | 0127 | 0.827 | 21.00 | 0.295 | 7.50 | 3 x 120° | |
| 14 | 0140 | 0.906 | 23.00 | 0.295 | 7.50 | 3 x 120° | |
| 15 | 0150 | 0.945 | 24.00 | 0.295 | 7.50 | 3 x 120° | |
| 0.625 | 0158 | 0.984 | 25.00 | 0.295 | 7.50 | 3 x 120° | |
| 16 | 0160 | 0.984 | 25.00 | 0.295 | 7.50 | 3 x 120° | |
| 18 | 0180 | 1.22 | 31.00 | 0.295 | 7.50 | 3 x 120° | |
| 0.75 | 0191 | 1.22 | 31.00 | 0.295 | 7.50 | 3 x 120° | |
| 20 | 0200 | 1.299 | 33.00 | 0.295 | 7.50 | 3 x 120° | |
| 22 | 0220 | 1.378 | 35.00 | 0.295 | 7.50 | 3 x 120° | |
| 0.875 | 0222 | 1.378 | 35.00 | 0.295 | 7.50 | 3 x 120° | |
| 24 | 0240 | 1.457 | 37.00 | 0.295 | 7.50 | 3 x 120° | |
| 25 | 0250 | 1.496 | 38.00 | 0.349 | 10.00 | 3 x 120° | |
| 1 | 0254 | 1.496 | 38.00 | 0.349 | 10.00 | 3 x 120° | |
| 28 | 0280 | 1.614 | 41.00 | 0.349 | 10.00 | 3 x 120° | |
| 1.125 | 0286 | 1.614 | 41.00 | 0.349 | 10.00 | 3 x 120° | |
| 30 | 0300 | 1.693 | 43.00 | 0.349 | 10.00 | 3 x 120° | |
| 1.25 | 0317 | 1.772 | 45.00 | 0.349 | 10.00 | 3 x 120° | |
| 32 | 0320 | 1.772 | 45.00 | 0.394 | 10.00 | 3 x 120° | |
| 33 | 0330 | 1.811 | 46.00 | 0.394 | 10.00 | 3 x 120° | |
| 1.375 | 0349 | 1.89 | 48.00 | 0.394 | 10.00 | 3 x 120° | |
| 35 | 0350 | 1.89 | 48.00 | 0.394 | 10.00 | 3 x 120° | |
| 38 | 0380 | 2.087 | 53.00 | 0.394 | 10.00 | 3 x 120° | |
| 1.5 | 0381 | 2.087 | 53.00 | 0.394 | 10.00 | 3 x 120° | |
| 40 | 0400 | 2.165 | 55.00 | 0.394 | 10.00 | 3 x 120° | |
| 1.625 | 0412 | 2.165 | 55.00 | 0.394 | 10.00 | 3 x 120° | |
| 43 | 0430 | 2.283 | 58.00 | 0.394 | 10.00 | 3 x 120° | |
| 1.75 | 0444 | 2.362 | 60.00 | 0.394 | 10.00 | 3 x 120° | |
| 45 | 0450 | 2.362 | 60.00 | 0.394 | 10.00 | 3 x 120° | |
| 1.875 | 0476 | 2.48 | 63.00 | 0.394 | 10.00 | 3 x 120° | |
| DØ (Imperial) | DØ (Metric) | Size Code | D3 | L1 | No of Set Screws | ||
|---|---|---|---|---|---|---|---|
| in | mm | in | mm | ||||
| 48 | 480 | 2.48 | 63.00 | 0.394 | 10.00 | 3 x 120° | |
| 50 | 500 | 2.559 | 65.00 | 0.394 | 10.00 | 3 x 120° | |
| 2.000 | 508 | 2.559 | 65.00 | 0.394 | 10.00 | 3 x 120° | |
| 53 | 530 | 2.677 | 68.00 | 0.394 | 10.00 | 3 x 120° | |
| 2.125 | 539 | 2.677 | 68.00 | 0.394 | 10.00 | 3 x 120° | |
| 55 | 550 | 2.756 | 70.00 | 0.394 | 10.00 | 3 x 120° | |
| 2.250 | 571 | 2.756 | 70.00 | 0.394 | 10.00 | 3 x 120° | |
| 58 | 580 | 3.031 | 77.00 | 0.394 | 10.00 | 3 x 120° | |
| 60 | 600 | 3.11 | 79.00 | 0.394 | 10.00 | 3 x 120° | |
| 2.375 | 603 | 3.11 | 79.00 | 0.394 | 10.00 | 3 x 120° | |
| 2.500 | 635 | 3.228 | 82.00 | 0.394 | 10.00 | 3 x 120° | |
| 65 | 650 | 3.307 | 84.00 | 0.472 | 12.00 | 3 x 120° | |
| 2.625 | 666 | 3.307 | 84.00 | 0.472 | 12.00 | 3 x 120° | |
| 68 | 680 | 3.425 | 87.00 | 0.472 | 12.00 | 3 x 120° | |
| 2.750 | 698 | 3.504 | 89.00 | 0.472 | 12.00 | 3 x 120° | |
| 70 | 700 | 3.504 | 89.00 | 0.472 | 12.00 | 3 x 120° | |
| 2.875 | 730 | 3.74 | 95.00 | 0.472 | 12.00 | 3 x 120° | |
| 75 | 750 | 3.858 | 98.00 | 0.472 | 12.00 | 3 x 120° | |
| 3.000 | 762 | 3.858 | 98.00 | 0.472 | 12.00 | 3 x 120° | |
| 3.125 | 794 | 4.055 | 103.00 | 0.472 | 12.00 | 3 x 120° | |
| 80 | 800 | 4.055 | 103.00 | 0.472 | 12.00 | 3 x 120° | |
| 3.250 | 825 | 4.055 | 103.00 | 0.472 | 12.00 | 3 x 120° | |
| 85 | 850 | 4.252 | 108.00 | 0.472 | 12.00 | 3 x 120° | |
| 3.375 | 857 | 4.252 | 108.00 | 0.472 | 12.00 | 3 x 120° | |
| 3.500 | 889 | 4.449 | 113.00 | 0.472 | 12.00 | 3 x 120° | |
| 90 | 900 | 4.449 | 113.00 | 0.472 | 12.00 | 3 x 120° | |
| 3.625* | 921 | 4.449 | 113.00 | 0.472 | 12.00 | 3 x 120° | |
| 95* | 950 | 4.646 | 118.00 | 0.472 | 12.00 | 3 x 120° | |
| 3.750* | 953 | 4.646 | 118.00 | 0.472 | 12.00 | 3 x 120° | |
| 3.875* | 984 | 4.764 | 121.00 | 0.472 | 12.00 | 3 x 120° | |
| 100* | 1000 | 4.843 | 123.00 | 0.472 | 12.00 | 3 x 120° | |
| 4.000* | 1016 | 4.843 | 123.00 | 0.59 | 15.00 | 3 x 120° | |
| DØ (Metric) | Size Code | Type 8STD | Type 8B | Type 12 | Type 12DIN | Type 13 | Type 13DIN | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D1 | L1 | D1 | L1 | D1 | L1 | D1 | L1 | D1 | L1 | ||||
| 10 | 0100 | 19.20 | 6.60 | 19.20 | 7.10 | 18.10 | 5.50 | 21.00 | 7.00 | 18.10 | 5.50 | 21.00 | 7.00 |
| 11 | 0110 | -- | -- | -- | -- | 20.60 | 5.50 | -- | -- | 20.60 | 5.50 | -- | -- |
| 12 | 0120 | 21.60 | 5.60 | 21.60 | 7.60 | 20.60 | 5.50 | 23.00 | 7.00 | 20.60 | 5.50 | 23.00 | 7.00 |
| 13 | 0130 | -- | -- | -- | -- | 23.10 | 6.00 | -- | -- | 23.10 | 6.00 | -- | -- |
| 14 | 0140 | 24.60 | 5.60 | 24.60 | 7.60 | 23.10 | 6.00 | 25.00 | 7.00 | 23.10 | 6.00 | 25.00 | 7.00 |
| 15 | 0150 | 24.60 | 6.60 | 24.60 | 8.60 | 26.90 | 7.00 | -- | -- | 26.90 | 7.00 | -- | -- |
| 16 | 0160 | 28.00 | 7.50 | 28.00 | 9.00 | 26.90 | 7.00 | 27.00 | 7.00 | 26.90 | 7.00 | 27.00 | 7.00 |
| 17 | 0170 | -- | -- | -- | -- | 26.90 | 7.00 | -- | -- | 26.90 | 7.00 | -- | -- |
| 18 | 0180 | 30.00 | 8.00 | 30.00 | 10.00 | 30.90 | 8.00 | 33.00 | 10.00 | 30.90 | 8.00 | 33.00 | 10.00 |
| 19 | 0190 | 31.00 | 7.50 | 31.00 | 9.00 | 30.90 | 8.00 | -- | -- | 30.90 | 8.00 | -- | -- |
| 20 | 0200 | 35.00 | 7.50 | 35.00 | 9.50 | 30.90 | 8.00 | 35.00 | 10.00 | 30.90 | 8.00 | 35.00 | 10.00 |
| 21 | 0210 | -- | -- | -- | -- | 35.40 | 8.00 | -- | -- | 35.40 | 8.00 | -- | -- |
| 22 | 0220 | 35.00 | 7.50 | 35.00 | 9.50 | 35.40 | 8.00 | 37.00 | 10.00 | 35.40 | 8.00 | 37.00 | 10.00 |
| 23 | 0230 | -- | -- | -- | -- | 35.40 | 8.00 | -- | -- | 35.40 | 8.00 | -- | -- |
| 24 | 0240 | 38.00 | 7.50 | 38.00 | 9.50 | 35.40 | 8.00 | 39.00 | 10.00 | 35.40 | 8.00 | 39.00 | 10.00 |
| 25 | 0250 | 38.00 | 7.50 | 38.00 | 9.50 | 38.20 | 8.50 | 40.00 | 10.00 | 38.20 | 8.50 | 40.00 | 10.00 |
| 26 | 0260 | 40.00 | 8.00 | 40.00 | 10.00 | 38.20 | 8.50 | -- | -- | -- | -- | -- | -- |
| 28 | 0280 | 42.00 | 9.00 | 42.00 | 11.00 | 43.30 | 9.00 | 43.00 | 10.00 | 43.30 | 9.00 | 43.00 | 10.00 |
| 30 | 0300 | 45.00 | 10.50 | 45.00 | 11.00 | 43.30 | 9.00 | 45.00 | 10.00 | 43.30 | 9.00 | 45.00 | 10.00 |
| 32 | 0320 | 48.00 | 10.50 | 48.00 | 11.00 | 43.30 | 9.00 | 48.00 | 10.00 | 43.30 | 9.00 | 48.00 | 10.00 |
| 33 | 0330 | 50.00 | 11.00 | -- | -- | 53.50 | 11.50 | 48.00 | 10.00 | 53.50 | 9.00 | 48.00 | 10.00 |
| 35 | 0350 | 52.00 | 11.00 | 52.00 | 11.50 | 53.50 | 11.50 | 50.00 | 10.00 | 53.50 | 11.50 | 50.00 | 10.00 |
| 38 | 0380 | 55.00 | 10.30 | 55.00 | 11.50 | 60.50 | 11.50 | 56.00 | 13.00 | 60.50 | 11.50 | 56.00 | 13.00 |
| 40 | 0400 | 58.00 | 10.80 | 58.00 | 11.50 | 60.50 | 11.50 | 58.00 | 13.00 | 60.50 | 11.50 | 58.00 | 13.00 |
| 42 | 0420 | 62.00 | 12.00 | 62.00 | 14.30 | 60.50 | 11.50 | -- | -- | -- | -- | -- | -- |
| 43 | 0430 | 62.00 | 12.00 | 62.00 | 14.30 | 60.50 | 11.50 | 61.00 | 13.00 | -- | -- | -- | -- |
| 44 | 0440 | -- | -- | -- | -- | 65.50 | 11.50 | -- | -- | -- | -- | -- | -- |
| 45 | 0450 | 64.00 | 11.60 | 64.00 | 14.30 | 65.50 | 11.50 | 63.00 | 13.00 | -- | -- | -- | -- |
| 48 | 0480 | 68.40 | 11.60 | 68.40 | 14.30 | 65.50 | 11.50 | 66.00 | 13.00 | -- | -- | -- | -- |
| 50 | 0500 | 69.30 | 11.60 | 69.30 | 14.30 | 72.50 | 11.50 | 70.00 | 14.00 | -- | -- | -- | -- |
| 53 | 0530 | -- | -- | -- | -- | -- | -- | 73.00 | 14.00 | -- | -- | -- | -- |
| 55 | 0550 | 75.40 | 13.30 | 75.40 | 15.30 | 72.50 | 11.50 | 75.00 | 14.00 | -- | -- | -- | -- |
| 58 | 0580 | 78.40 | 13.30 | 78.40 | 15.30 | -- | -- | 78.00 | 14.00 | -- | -- | -- | -- |
| 60 | 0600 | 80.40 | 13.30 | 80.40 | 15.30 | 79.30 | 11.50 | 80.00 | 14.00 | -- | -- | -- | -- |
| 63 | 0630 | -- | -- | -- | -- | -- | -- | 83.00 | 14.00 | -- | -- | -- | -- |
| 65 | 0650 | 85.40 | 13.00 | 85.40 | 15.30 | 84.50 | 11.50 | 85.00 | 14.00 | -- | -- | -- | -- |
| 68 | 0680 | 91.50 | 13.70 | 91.50 | 16.00 | -- | -- | 90.00 | 16.00 | -- | -- | -- | -- |
| 70 | 0700 | 92.00 | 13.00 | 92.00 | 15.30 | 89.50 | 11.50 | 92.00 | 16.00 | -- | -- | -- | -- |
| 75 | 0750 | 99.00 | 14.00 | 99.00 | 15.30 | 94.50 | 11.50 | 97.00 | 16.00 | -- | -- | -- | -- |
| 80 | 0800 | 104.00 | 15.00 | 104.00 | 16.30 | 99.50 | 11.50 | 105.00 | 18.00 | -- | -- | -- | -- |
| 85 | 0850 | 109.00 | 14.80 | -- | -- | 105.50 | 13.50 | 110.00 | 18.00 | -- | -- | -- | -- |
| 90 | 0900 | 114.00 | 14.80 | -- | -- | 111.50 | 13.50 | 115.00 | 18.00 | -- | -- | -- | -- |
| 95 | 0950 | 120.30 | 15.80 | -- | -- | 116.50 | 13.50 | 120.00 | 18.00 | -- | -- | -- | -- |
| 100 | 1000 | 123.30 | 15.80 | -- | -- | 119.50 | 13.50 | 125.00 | 18.00 | -- | -- | -- | -- |
| Type 21 | Type 31 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| DØ (Imperial) | DØ (Metric) | Size Code | D1 | L1 | D1 | L1 | ||||
| in | mm | in | mm | in | mm | in | mm | |||
| 0.375 | 10 | 0095 | 0.969 | 24.60 | 0.344 | 8.74 | 0.812 | 20.62 | 0.312 | 7.93 |
| 12 | 0120 | 1.094 | 27.79 | 0.344 | 8.74 | -- | -- | -- | -- | |
| 0.500 | 0127 | 1.094 | 27.79 | 0.344 | 8.74 | 1 | 25.1 | 0.312 | 7.93 | |
| 0.625 | 16 | 0158 | 1.219 | 30.95 | 0.406 | 10.32 | 1.25 | 31.75 | 0.405 | 10.28 |
| 18* | 0180 | 1.344 | 34.15 | 0.406 | 10.32 | -- | -- | -- | -- | |
| 0.750 | 19 | 0191 | 1.344 | 34.15 | 0.406 | 10.32 | 1.375 | 34.93 | 0.405 | 10.28 |
| 20* | 0200 | 1.406 | 35.70 | 0.406 | 10.32 | -- | -- | -- | -- | |
| 0.875 | 22 | 0222 | 1.469 | 37.30 | 0.406 | 10.32 | 1.5 | 38.1 | 0.406 | 10.32 |
| 1.000 | 25 | 0254 | 1.594 | 40.50 | 0.406 | 10.32 | 1.625 | 41.28 | 0.437 | 11.1 |
| 28 | 0280 | 1.875 | 47.63 | 0.472 | 11.99 | -- | -- | -- | -- | |
| 1.125 | 0286 | 1.875 | 47.63 | 0.472 | 11.99 | 1.75 | 44.44 | 0.437 | 11.1 | |
| 30* | 0300 | 2.000 | 50.80 | 0.472 | 11.99 | -- | -- | -- | -- | |
| 1.250 | 32 | 0317 | 2.000 | 50.80 | 0.472 | 11.99 | 1.875 | 47.63 | 0.437 | 11.1 |
| 33* | 0330 | 2.125 | 53.98 | 0.472 | 11.99 | -- | -- | -- | -- | |
| 1.375 | 35 | 0349 | 2.125 | 53.98 | 0.472 | 11.99 | 2 | 50.8 | 0.437 | 11.1 |
| 1.500 | 38 | 0381 | 2.250 | 57.15 | 0.472 | 11.99 | 2.125 | 53.98 | 0.437 | 11.1 |
| 40* | 0400 | 2.375 | 60.33 | 0.472 | 11.99 | -- | -- | -- | -- | |
| 1.625 | 0412 | 2.375 | 60.33 | 0.472 | 11.99 | 2.375 | 60.33 | 0.5 | 12.7 | |
| 43* | 0430 | 2.500 | 63.50 | 0.472 | 11.99 | -- | -- | -- | -- | |
| 1.750 | 45 | 0444 | 2.500 | 63.50 | 0.472 | 11.99 | 2.5 | 63.5 | 0.5 | 12.7 |
| 1.875 | 48 | 0476 | 2.625 | 66.68 | 0.472 | 11.99 | 2.625 | 66.68 | 0.5 | 12.7 |
| 50 | 0500 | 2.750 | 69.85 | 0.531 | 13.50 | -- | -- | -- | -- | |
| 2.000 | 0508 | 2.750 | 69.85 | 0.531 | 13.50 | 2.75 | 69.85 | 0.5 | 12.7 | |
| 53 | 0530 | 2.875 | 73.03 | 0.531 | 13.50 | -- | -- | -- | -- | |
| 2.125 | 0539 | 2.875 | 73.03 | 0.531 | 13.50 | 3 | 76.2 | 0.562 | 14.28 | |
| 55* | 0550 | 3.000 | 76.20 | 0.531 | 13.50 | -- | -- | -- | -- | |
| 2.250 | 0571 | 3.000 | 76.20 | 0.531 | 13.50 | 3.125 | 79.38 | 0.562 | 14.28 | |
| 2.375 | 60 | 0603 | 3.125 | 79.38 | 0.531 | 13.50 | 3.25 | 82.55 | 0.562 | 14.28 |
| 2.500 | 0635 | 3.250 | 82.55 | 0.531 | 13.50 | 3.375 | 85.73 | 0.562 | 14.28 | |
| 65* | 0650 | 3.625 | 92.08 | 0.625 | 15.88 | -- | -- | -- | -- | |
| 2.625 | 0666 | 3.625 | 92.08 | 0.625 | 15.88 | 3.375 | 85.73 | 0.625 | 15.88 | |
| 2.750 | 70 | 0698 | 3.750 | 95.25 | 0.625 | 15.88 | 3.5 | 88.9 | 0.625 | 15.88 |
| 2.875 | 0730 | 3.875 | 98.43 | 0.625 | 15.88 | 3.75 | 95.25 | 0.625 | 15.88 | |
| 75* | 0750 | 4.000 | 101.60 | 0.625 | 15.88 | -- | -- | -- | -- | |
| 3.000 | 0762 | 4.000 | 101.60 | 0.625 | 15.88 | 3.875 | 98.43 | 0.625 | 15.88 | |
| 3.125* | 80* | 0794 | 4.375 | 111.13 | 0.783 | 19.88 | 4 | 101.6 | 0.783 | 19.88 |
| 3.250* | 0825 | 4.500 | 114.30 | 0.783 | 19.88 | 4.125 | 104.78 | 0.783 | 19.88 | |
| 3.375* | 85* | 0857 | 4.625 | 117.48 | 0.783 | 19.88 | 4.25 | 107.95 | 0.783 | 19.88 |
| 3.500* | 90* | 0889 | 4.750 | 120.65 | 0.783 | 19.88 | 4.375 | 111.13 | 0.783 | 19.88 |
| 3.625* | 0921 | 4.875 | 123.83 | 0.783 | 19.88 | 4.5 | 114.3 | 0.783 | 19.88 | |
| 3.750* | 95* | 0953 | 5.000 | 127.00 | 0.783 | 19.88 | 4.625 | 117.48 | 0.783 | 19.88 |
| 3.875* | 0984 | 5.125 | 130.17 | 0.783 | 19.88 | -- | -- | -- | -- | |
| 100* | 1000 | 4.875 | 123.83 | 0.783 | 19.88 | -- | -- | -- | -- | |
| 4.000* | 1016 | 5.250 | 133.35 | 0.783 | 19.88 | 4.875 | 123.83 | 0.783 | 19.88 | |
| DØ (Imperial) | Size Code | D2 | D3 | L1 | L2 | Slot P.C.D. | O'-ring Size | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| in | mm | in | mm | in | mm | in | mm | in | mm | |||
| 0.500* | 0127 | 0.543 | 13.80 | 0.996 | 25.30 | 0.311 | 7.90 | 0.098 | 2.50 | 0.780 | 19.80 | BS214 |
| 0.625* | 0158 | 0.669 | 16.98 | 1.246 | 31.65 | 0.406 | 10.30 | 0.098 | 2.50 | 0.953 | 24.20 | BS218 |
| 0.750* | 0191 | 0.793 | 20.15 | 1.371 | 34.82 | 0.406 | 10.30 | 0.098 | 2.50 | 1.093 | 27.75 | BS220 |
| 0.875* | 0222 | 0.919 | 23.33 | 1.496 | 38.00 | 0.406 | 10.30 | 0.098 | 2.50 | 1.220 | 31.00 | BS222 |
| 1.000 | 0254 | 1.043 | 26.50 | 1.621 | 41.18 | 0.439 | 11.15 | 0.098 | 2.50 | 1.343 | 34.10 | BS223 |
| 1.125 | 0286 | 1.184 | 30.08 | 1.746 | 44.35 | 0.439 | 11.15 | 0.098 | 2.50 | 1.469 | 37.30 | BS224 |
| 1.250 | 0317 | 1.309 | 33.25 | 1.871 | 47.53 | 0.439 | 11.15 | 0.098 | 2.50 | 1.594 | 40.50 | BS225 |
| 1.375 | 0349 | 1.434 | 36.43 | 1.996 | 50.70 | 0.439 | 11.15 | 0.098 | 2.50 | 1.717 | 43.60 | BS226 |
| 1.500 | 0381 | 1.559 | 39.60 | 2.121 | 53.88 | 0.439 | 11.15 | 0.098 | 2.50 | 1.843 | 46.80 | BS227 |
| 1.625 | 0412 | 1.684 | 42.78 | 2.371 | 60.23 | 0.502 | 12.75 | 0.118 | 3.00 | 2.031 | 51.60 | BS229 |
| 1.750 | 0444 | 1.809 | 45.95 | 2.496 | 63.40 | 0.502 | 12.75 | 0.118 | 3.00 | 2.157 | 54.80 | BS230 |
| 1.875 | 0476 | 1.934 | 49.13 | 2.621 | 66.58 | 0.502 | 12.75 | 0.118 | 3.00 | 2.280 | 57.90 | BS231 |
| 2.000 | 0508 | 2.059 | 52.30 | 2.746 | 69.75 | 0.502 | 12.75 | 0.118 | 3.00 | 2.406 | 61.10 | BS232 |
| 2.125 | 0539 | 2.184 | 55.48 | 2.996 | 76.10 | 0.564 | 14.33 | 0.138 | 3.50 | 2.594 | 65.90 | BS234 |
| 2.250 | 0571 | 2.309 | 58.65 | 3.121 | 79.28 | 0.564 | 14.33 | 0.138 | 3.50 | 2.717 | 69.00 | BS235 |
| 2.375 | 0603 | 2.434 | 61.83 | 3.246 | 82.45 | 0.564 | 14.33 | 0.138 | 3.50 | 2.843 | 72.20 | BS236 |
| 2.500 | 0635 | 2.559 | 65.00 | 3.371 | 85.63 | 0.564 | 14.33 | 0.138 | 3.50 | 2.969 | 75.40 | BS237 |
| 2.625 | 0666 | 2.684 | 68.18 | 3.371 | 85.63 | 0.627 | 15.93 | 0.138 | 3.50 | 3.031 | 77.00 | BS237 |
| 2.750 | 0698 | 2.809 | 71.35 | 3.496 | 88.80 | 0.627 | 15.93 | 0.138 | 3.50 | 3.157 | 80.20 | BS238 |
| 2.875 | 0730 | 2.934 | 74.53 | 3.746 | 95.15 | 0.627 | 15.93 | 0.138 | 3.50 | 3.343 | 84.90 | BS240 |
| 3.000 | 0762 | 3.059 | 77.70 | 3.871 | 98.33 | 0.627 | 15.93 | 0.138 | 3.50 | 3.469 | 88.10 | BS241 |
| 3.125* | 0794 | 3.225 | 81.92 | 3.996 | 101.50 | 0.781 | 19.84 | 0.138 | 3.50 | 3.594 | 91.30 | BS242 |
| 3.250* | 0825 | 3.350 | 85.10 | 4.121 | 104.68 | 0.781 | 19.84 | 0.138 | 3.50 | 3.717 | 94.40 | BS243 |
| 3.375* | 0857 | 3.475 | 88.27 | 4.246 | 107.85 | 0.781 | 19.84 | 0.138 | 3.50 | 3.843 | 97.60 | BS244 |
| 3.500* | 0889 | 3.600 | 91.44 | 4.371 | 111.03 | 0.781 | 19.84 | 0.138 | 3.50 | 3.969 | 100.80 | BS245 |
| 3.625* | 0921 | 3.725 | 94.62 | 4.496 | 114.20 | 0.781 | 19.84 | 0.138 | 3.50 | 4.094 | 104.00 | BS246 |
| 3.750* | 0953 | 3.850 | 97.79 | 4.621 | 117.38 | 0.781 | 19.84 | 0.138 | 3.50 | 4.217 | 107.10 | BS247 |
| 3.875* | 0984 | 3.975 | 100.97 | 4.746 | 120.55 | 0.781 | 19.84 | 0.138 | 3.50 | 4.343 | 110.30 | BS248 |
| 4.000* | 1016 | 4.100 | 104.14 | 4.871 | 123.73 | 0.781 | 19.84 | 0.138 | 3.50 | 4.469 | 113.50 | BS249 |
| DØ (Imperial) | Size Code | D1 | D2 | L1 | L2 | PIN PCD | PIN Ø | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | ||
| 0.500* | 0127 | 1.000 | 25.40 | 0.543 | 13.80 | 0.313 | 7.95 | 0.112 | 2.85 | 0.687 | 17.46 | 0.0790 | 2.00 |
| 0.625 | 0158 | 1.250 | 31.75 | 0.669 | 16.98 | 0.405 | 10.28 | 0.157 | 4.00 | 0.813 | 20.64 | 0.0790 | 2.00 |
| 0.750* | 0191 | 1.375 | 34.93 | 0.792 | 20.12 | 0.405 | 10.28 | 0.157 | 4.00 | 0.937 | 23.81 | 0.0790 | 2.00 |
| 0.875 | 0222 | 1.500 | 38.10 | 0.919 | 23.33 | 0.405 | 10.28 | 0.157 | 4.00 | 1.063 | 26.99 | 0.0790 | 2.00 |
| 1.000 | 0254 | 1.625 | 41.28 | 1.043 | 26.50 | 0.437 | 11.10 | 0.161 | 4.10 | 1.187 | 30.15 | 0.0790 | 2.00 |
| 1.125 | 0286 | 1.750 | 44.44 | 1.184 | 30.08 | 0.437 | 11.10 | 0.161 | 4.10 | 1.313 | 33.35 | 0.0790 | 2.00 |
| 1.250 | 0317 | 1.875 | 47.63 | 1.309 | 33.25 | 0.437 | 11.10 | 0.161 | 4.10 | 1.437 | 36.50 | 0.0790 | 2.00 |
| 1.375 | 0349 | 2.000 | 50.80 | 1.435 | 36.45 | 0.437 | 11.10 | 0.161 | 4.10 | 1.563 | 39.70 | 0.0790 | 2.00 |
| 1.500 | 0381 | 2.125 | 53.98 | 1.559 | 39.60 | 0.437 | 11.10 | 0.161 | 4.10 | 1.687 | 42.85 | 0.0790 | 2.00 |
| 1.625 | 0412 | 2.375 | 60.33 | 1.684 | 42.78 | 0.500 | 12.70 | 0.165 | 4.20 | 1.875 | 47.63 | 0.1180 | 3.00 |
| 1.750 | 0444 | 2.500 | 63.50 | 1.809 | 45.95 | 0.500 | 12.70 | 0.165 | 4.20 | 2.000 | 50.80 | 0.1180 | 3.00 |
| 1.875 | 0476 | 2.625 | 66.68 | 1.934 | 49.13 | 0.500 | 12.70 | 0.165 | 4.20 | 2.125 | 53.98 | 0.1180 | 3.00 |
| 2.000 | 0508 | 2.750 | 69.85 | 2.059 | 52.30 | 0.500 | 12.70 | 0.165 | 4.20 | 2.250 | 57.15 | 0.1180 | 3.00 |
| 2.125 | 0539 | 3.000 | 76.20 | 2.184 | 55.48 | 0.562 | 14.28 | 0.177 | 4.50 | 2.375 | 60.33 | 0.1180 | 3.00 |
| 2.250 | 0571 | 3.125 | 79.38 | 2.309 | 58.65 | 0.562 | 14.28 | 0.177 | 4.50 | 2.500 | 63.50 | 0.1180 | 3.00 |
| 2.375 | 0603 | 3.250 | 82.55 | 2.438 | 61.93 | 0.562 | 14.28 | 0.177 | 4.50 | 2.625 | 66.68 | 0.1180 | 3.00 |
| 2.500 | 0635 | 3.375 | 85.73 | 2.559 | 65.00 | 0.562 | 14.28 | 0.177 | 4.50 | 2.750 | 69.85 | 0.1180 | 3.00 |
| 2.625 | 0666 | 3.375 | 85.73 | 2.684 | 68.18 | 0.625 | 15.88 | 0.173 | 4.40 | 2.875 | 73.03 | 0.1180 | 3.00 |
| 2.750* | 0698 | 3.500 | 88.90 | 2.809 | 71.35 | 0.625 | 15.88 | 0.173 | 4.40 | 3.000 | 76.20 | 0.1180 | 3.00 |
| 2.875 | 0730 | 3.750 | 95.25 | 2.934 | 74.53 | 0.625 | 15.88 | 0.173 | 4.40 | 3.125 | 79.38 | 0.1180 | 3.00 |
| 3.000 | 0762 | 3.875 | 98.43 | 3.059 | 77.70 | 0.625 | 15.88 | 0.173 | 4.40 | 3.250 | 82.55 | 0.1180 | 3.00 |
| 3.125 | 0794 | 4.000 | 101.60 | 3.225 | 81.92 | 0.783 | 19.88 | 0.177 | 4.50 | 3.376 | 85.75 | 0.1180 | 3.00 |
| 3.250 | 0825 | 4.125 | 104.78 | 3.350 | 85.09 | 0.783 | 19.88 | 0.177 | 4.50 | 3.500 | 88.90 | 0.1180 | 3.00 |
| 3.375 | 0857 | 4.250 | 107.95 | 3.475 | 88.27 | 0.783 | 19.88 | 0.177 | 4.50 | 3.624 | 92.05 | 0.1180 | 3.00 |
| 3.500 | 0889 | 4.375 | 111.13 | 3.600 | 91.44 | 0.783 | 19.88 | 0.177 | 4.50 | 3.750 | 95.25 | 0.1180 | 3.00 |
| 3.625 | 0921 | 4.500 | 114.30 | 3.725 | 94.62 | 0.783 | 19.88 | 0.177 | 4.50 | 3.874 | 98.40 | 0.1180 | 3.00 |
| 3.750 | 0953 | 4.625 | 117.48 | 3.850 | 97.79 | 0.783 | 19.88 | 0.177 | 4.50 | 4.000 | 101.60 | 0.1180 | 3.00 |
| 3.875 | 0984 | 4.750 | 120.65 | 3.975 | 100.97 | 0.783 | 19.88 | 0.177 | 4.50 | 4.125 | 104.78 | 0.1180 | 3.00 |
| 4.000 | 1016 | 4.875 | 123.83 | 4.100 | 104.14 | 0.783 | 19.88 | 0.177 | 4.50 | 4.250 | 107.95 | 0.1180 | 3.00 |
| DØ (Imperial) | DØ (Metric) | Size Code | Type 11 | Type 20 | Type 19B | Type 24 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D1 | L1 | D1 | L1 | D1 | L1 | D1 | L1 | |||||||
| in | mm | in | mm | in | mm | in | mm | |||||||
| 0.375 | 0095 | 0.875 | 22.23 | 0.312 | 7.93 | 0.969 | 24.6 | 0.344 | 8.74 | -- | -- | -- | -- | |
| 10 | 0100 | 0.875 | 22.23 | 0.312 | 7.93 | 0.969 | 24.6 | 0.344 | 8.74 | 21.00 | 6.60 | 21.00 | 8.60 | |
| 12 | 0120 | 1.000 | 25.40 | 0.312 | 7.93 | 1.094 | 27.79 | 0.344 | 8.74 | 23.00 | 6.60 | 23.00 | 8.60 | |
| 0.500 | 0127 | 1.000 | 25.40 | 0.312 | 7.93 | 1.094 | 27.79 | 0.344 | 8.74 | -- | -- | -- | -- | |
| 13 | 0130 | 1.000 | 25.40 | 0.312 | 7.93 | 1.094 | 27.79 | 0.344 | 8.74 | -- | -- | -- | -- | |
| 14 | 0140 | 1.250 | 31.75 | 0.405 | 10.28 | 1.219 | 30.95 | 0.406 | 10.32 | 25.00 | 6.60 | 25.00 | 8.60 | |
| 15 | 0150 | -- | -- | -- | -- | 1.219 | 30.95 | 0.406 | 10.32 | 27.00 | 6.60 | 27.00 | 8.60 | |
| 0.625 | 0158 | 1.250 | 31.75 | 0.405 | 10.28 | 1.219 | 30.95 | 0.406 | 10.32 | -- | -- | -- | -- | |
| 16 | 0160 | 1.250 | 31.75 | 0.405 | 10.28 | 1.219 | 30.95 | 0.406 | 10.32 | 27.00 | 6.60 | 27.00 | 8.60 | |
| 18 | 0180 | 1.375 | 34.93 | 0.405 | 10.28 | 1.344 | 34.15 | 0.406 | 10.32 | 33.00 | 7.50 | 33.00 | 10.00 | |
| 0.750 | 0191 | 1.375 | 34.93 | 0.405 | 10.28 | 1.344 | 34.15 | 0.406 | 10.32 | -- | -- | -- | -- | |
| 20 | 0200 | 1.500 | 38.10 | 0.405 | 10.28 | 1.406 | 35.7 | 0.406 | 10.32 | 35.00 | 7.50 | 35.00 | 10.00 | |
| 22 | 0220 | 1.500 | 38.10 | 0.405 | 10.28 | 1.469 | 37.3 | 0.406 | 10.32 | 37.00 | 7.50 | 37.00 | 10.00 | |
| 0.875 | 0222 | 1.500 | 38.10 | 0.405 | 10.28 | 1.469 | 37.3 | 0.406 | 10.32 | -- | -- | -- | -- | |
| 24 | 0240 | 1.625 | 41.28 | 0.437 | 11.10 | 1.594 | 40.5 | 0.406 | 10.32 | 39.00 | 7.50 | 39.00 | 10.00 | |
| 25 | 0250 | 1.625 | 41.28 | 0.437 | 11.10 | 1.594 | 40.5 | 0.406 | 10.32 | 40.00 | 7.50 | 40.00 | 10.00 | |
| 1 | 0254 | 1.625 | 41.28 | 0.437 | 11.10 | 1.594 | 40.5 | 0.406 | 10.32 | -- | -- | -- | -- | |
| 28 | 0280 | 1.750 | 44.44 | 0.437 | 11.10 | 1.875 | 47.63 | 0.472 | 11.99 | 43.00 | 7.50 | 43.00 | 10.00 | |
| 1.125 | 0286 | 1.750 | 44.44 | 0.437 | 11.10 | 1.875 | 47.63 | 0.472 | 11.99 | -- | -- | -- | -- | |
| 30 | 0300 | 1.875 | 47.63 | 0.437 | 11.10 | 2 | 50.8 | 0.472 | 11.99 | 45.00 | 7.50 | 45.00 | 10.00 | |
| 1.250 | 0317 | 1.875 | 47.63 | 0.437 | 11.10 | 2 | 50.8 | 0.472 | 11.99 | -- | -- | -- | -- | |
| 32 | 0320 | 1.875 | 47.63 | 0.437 | 11.10 | 2 | 50.8 | 0.472 | 11.99 | 48.00 | 7.50 | 48.00 | 10.00 | |
| 33 | 0330 | 2.000 | 50.80 | 0.437 | 11.10 | 2.125 | 53.98 | 0.472 | 11.99 | 48.00 | 7.50 | 48.00 | 10.00 | |
| 1.375 | 35 | 0350 | 2.000 | 50.80 | 0.437 | 11.10 | 2.125 | 53.98 | 0.472 | 11.99 | 50.00 | 7.50 | 50.00 | 10.00 |
| 1.500 | 38 | 0380 | 2.125 | 53.98 | 0.437 | 11.10 | 2.25 | 57.15 | 0.472 | 11.99 | 56.00 | 9.00 | 56.00 | 11.00 |
| 40 | 0400 | 2.375 | 60.33 | 0.500 | 12.70 | 2.375 | 60.33 | 0.472 | 11.99 | 58.00 | 9.00 | 58.00 | 11.00 | |
| 1.625 | 0412 | 2.375 | 60.33 | 0.500 | 12.70 | 2.375 | 60.33 | 0.472 | 11.99 | -- | -- | -- | -- | |
| 43 | 0430 | 2.500 | 63.50 | 0.500 | 12.70 | 2.5 | 63.5 | 0.472 | 11.99 | 61.00 | 9.00 | 61.00 | 11.00 | |
| 1.750 | 0444 | 2.500 | 63.50 | 0.500 | 12.70 | 2.5 | 63.5 | 0.472 | 11.99 | -- | -- | -- | -- | |
| 45 | 0450 | 2.625 | 66.68 | 0.500 | 12.70 | 2.5 | 63.5 | 0.472 | 11.99 | 63.00 | 9.00 | 63.00 | 11.00 | |
| 1.875 | 0476 | 2.625 | 66.68 | 0.500 | 12.70 | 2.625 | 66.68 | 0.472 | 11.99 | -- | -- | -- | -- | |
| 48 | 0480 | 2.750 | 69.85 | 0.500 | 12.70 | 2.625 | 66.68 | 0.472 | 11.99 | 66.00 | 9.00 | 66.00 | 11.00 | |
| 50 | 0500 | 2.750 | 69.85 | 0.500 | 12.70 | 2.75 | 69.85 | 0.531 | 13.5 | 70.00 | 9.50 | 70.00 | 13.00 | |
| 2 | 0508 | 2.750 | 69.85 | 0.500 | 12.70 | 2.75 | 69.85 | 0.531 | 13.5 | -- | -- | -- | -- | |
| 53 | 0530 | 3.000 | 76.20 | 0.562 | 14.28 | 2.875 | 73.03 | 0.531 | 13.5 | 73.00 | 11.00 | 73.00 | 13.00 | |
| 2.125 | 0539 | 3.000 | 76.20 | 0.562 | 14.28 | 2.875 | 73.03 | 0.531 | 13.5 | -- | -- | -- | -- | |
| 55 | 0550 | 3.125 | 79.38 | 0.562 | 14.28 | 3 | 76.2 | 0.531 | 13.5 | 75.00 | 11.00 | 75.00 | 13.00 | |
| 2.250 | 0571 | 3.125 | 79.38 | 0.562 | 14.28 | 3 | 76.2 | 0.531 | 13.5 | -- | -- | -- | -- | |
| 58 | 0580 | 3.250 | 82.55 | 0.562 | 14.28 | 3.125 | 79.38 | 0.531 | 13.5 | 78.00 | 11.00 | 78.00 | 13.00 | |
| 60 | 0600 | 3.250 | 82.55 | 0.562 | 14.28 | 3.125 | 79.38 | 0.531 | 13.5 | 80.00 | 11.00 | 80.00 | 13.00 | |
| 2.375 | 0603 | 3.250 | 82.55 | 0.562 | 14.28 | 3.125 | 79.38 | 0.531 | 13.5 | -- | -- | -- | -- | |
| 63 | 0630 | 3.375 | 85.73 | 0.562 | 14.28 | 3.25 | 82.55 | 0.531 | 13.5 | -- | -- | 83.00 | 13.00 | |
| 2.5 | 0635 | 3.375 | 85.73 | 0.562 | 14.28 | 3.25 | 82.55 | 0.531 | 13.5 | -- | -- | -- | -- | |
| 65 | 0650 | 3.375 | 85.73 | 0.625 | 15.88 | 3.625 | 92.08 | 0.625 | 15.88 | 85.00 | 11.00 | 85.00 | 13.00 | |
| 2.625 | 666 | 3.375 | 85.73 | 0.625 | 15.88 | 3.625 | 92.08 | 0.625 | 15.88 | -- | -- | -- | -- | |
| 2.750 | 698 | 3.500 | 88.90 | 0.625 | 15.88 | 3.75 | 95.25 | 0.625 | 15.88 | -- | -- | -- | -- | |
| 70 | 700 | 3.500 | 88.90 | 0.625 | 15.88 | 3.75 | 95.25 | 0.625 | 15.88 | 92.00 | 11.30 | 92.00 | 15.30 | |
| 2.875 | 730 | 3.750 | 95.25 | 0.625 | 15.88 | 3.875 | 98.43 | 0.625 | 15.88 | -- | -- | -- | -- | |
| 75 | 750 | 3.875 | 98.43 | 0.625 | 15.88 | 4 | 101.6 | 0.625 | 15.88 | 97.00 | 11.30 | 97.00 | 15.30 | |
| 3.000 | 762 | 3.875 | 98.43 | 0.625 | 15.88 | 4 | 101.6 | 0.625 | 15.88 | -- | -- | -- | -- | |
| 3.125 | 794 | 4.000 | 101.60 | 0.783 | 19.88 | 4.375 | 111.13 | 0.783 | 19.88 | -- | -- | -- | -- | |
| 80 | 800 | -- | -- | -- | -- | 4.5 | 114.3 | 0.783 | 19.88 | 105.00 | 12.00 | 105.00 | 15.70 | |
| 3.250 | 825 | 4.125 | 104.78 | 0.783 | 19.88 | 4.5 | 114.3 | 0.783 | 19.88 | -- | -- | -- | -- | |
| 85 | 850 | -- | -- | -- | -- | 4.625 | 117.48 | 0.783 | 19.88 | 110.00 | 14.00 | 110.00 | 15.70 | |
| 3.375 | 857 | 4.250 | 107.95 | 0.783 | 19.88 | 4.625 | 117.48 | 0.783 | 19.88 | -- | -- | -- | -- | |
| 3.500 | 889 | 4.375 | 111.13 | 0.783 | 19.88 | 4.75 | 120.65 | 0.783 | 19.88 | -- | -- | -- | -- | |
| 90 | 900 | -- | -- | -- | -- | 4.875 | 123.83 | 0.783 | 19.88 | 115.00 | 14.00 | 115.00 | 15.70 | |
| 3.625 | 921 | 4.500 | 114.30 | 0.783 | 19.88 | 4.875 | 123.83 | 0.783 | 19.88 | -- | -- | -- | -- | |
| 95 | 950 | -- | -- | -- | -- | 5 | 127 | 0.783 | 19.88 | 120.00 | 14.00 | 120.00 | 15.70 | |
| 3.750 | 953 | 4.625 | 117.48 | 0.783 | 19.88 | 5 | 127 | 0.783 | 19.88 | -- | -- | -- | -- | |
| 3.875 | 984 | 4.750 | 120.65 | 0.783 | 19.88 | 5.125 | 130.17 | 0.783 | 19.88 | -- | -- | -- | -- | |
| 100 | 1000 | -- | -- | -- | -- | 5.25 | 133.35 | 0.783 | 19.88 | 125.00 | 14.00 | 125.00 | 15.70 | |
| 4.000 | 1016 | 4.875 | 123.83 | 0.783 | 19.88 | 5.25 | 133.35 | 0.783 | 19.88 | -- | -- | -- | -- | |
| DØ (Imperial) | DØ (Metric) | Size Code | D1 | D2 | D3 | L1 | L2 | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| in | mm | in | mm | in | mm | in | mm | in | mm | |||
| 0.500 | 12 | 0127 | 1.144 | 29.05 | 0.539 | 13.70 | 1.563 | 39.70 | 0.685 | 17.40 | 0.311 | 7.90 |
| 15 | 0150 | 1.256 | 31.90 | 0.630 | 16.00 | 1.614 | 41.00 | 0.685 | 17.40 | 0.311 | 7.90 | |
| 0.625 | 16 | 0158 | 1.301 | 33.04 | 0.661 | 16.80 | 1.720 | 43.69 | 0.685 | 17.40 | 0.311 | 7.90 |
| 0.750 | 19 | 0191 | 1.426 | 36.21 | 0.787 | 20.00 | 1.831 | 46.50 | 0.685 | 17.40 | 0.311 | 7.90 |
| 20 | 0200 | 1.453 | 36.90 | 0.827 | 21.00 | 1.850 | 47.00 | 0.685 | 17.40 | 0.311 | 7.90 | |
| 0.875 | 22 | 0222 | 1.551 | 39.39 | 0.913 | 23.20 | 1.949 | 49.50 | 0.685 | 17.40 | 0.311 | 7.90 |
| 25 | 0250 | 1.650 | 41.90 | 1.024 | 26.00 | 2.047 | 52.00 | 0.685 | 17.40 | 0.311 | 7.90 | |
| 1.000 | 0254 | 1.676 | 42.56 | 1.039 | 26.40 | 2.067 | 52.50 | 0.685 | 17.40 | 0.311 | 7.90 | |
| 1.125 | 28 | 0286 | 1.801 | 45.74 | 1.165 | 29.60 | 2.303 | 58.50 | 1.059 | 26.90 | 0.437 | 11.10 |
| 30 | 0300 | 1.917 | 48.69 | 1.220 | 31.00 | 2.313 | 58.75 | 1.059 | 26.90 | 0.437 | 11.10 | |
| 1.250 | 0317 | 1.988 | 50.50 | 1.287 | 32.70 | 2.500 | 63.50 | 1.059 | 26.90 | 0.437 | 11.10 | |
| 33* | 0330 | 2.059 | 52.30 | 1.339 | 34.00 | 2.559 | 65.00 | 1.059 | 26.90 | 0.437 | 11.10 | |
| 1.375 | 35 | 0349 | 2.113 | 53.68 | 1.417 | 36.00 | 2.579 | 65.50 | 1.059 | 26.90 | 0.437 | 11.10 |
| 1.500 | 38 | 0381 | 2.238 | 56.85 | 1.539 | 39.10 | 2.736 | 69.50 | 1.059 | 26.90 | 0.437 | 11.10 |
| 40 | 0400 | 2.437 | 61.90 | 1.614 | 41.00 | 2.953 | 75.00 | 1.059 | 26.90 | 0.437 | 11.10 | |
| 1.625 | 0412 | 2.488 | 63.20 | 1.661 | 42.20 | 3.012 | 76.50 | 1.059 | 26.90 | 0.437 | 11.10 | |
| 1.750 | 0444 | 2.630 | 66.38 | 1.787 | 45.40 | 3.130 | 79.50 | 1.059 | 26.90 | 0.437 | 11.10 | |
| 45 | 0450 | 2.634 | 66.90 | 1.811 | 46.00 | 3.150 | 80.00 | 1.059 | 26.90 | 0.437 | 11.10 | |
| 1.875 | 48 | 0476 | 2.738 | 69.55 | 1.929 | 49.00 | 3.248 | 82.50 | 1.059 | 26.90 | 0.437 | 11.10 |
| 50 | 0500 | 2.831 | 71.90 | 2.008 | 51.00 | 3.346 | 85.00 | 1.059 | 26.90 | 0.437 | 11.10 | |
| 2.000 | 0508 | 2.863 | 72.73 | 2.039 | 51.80 | 3.366 | 85.50 | 1.059 | 26.90 | 0.437 | 11.10 | |
| 2.125 | 0539 | 3.113 | 79.08 | 2.161 | 54.90 | 3.760 | 95.50 | 1.312 | 33.33 | 0.563 | 14.30 | |
| 55* | 0550 | 3.146 | 79.90 | 2.205 | 56.00 | 3.780 | 96.00 | 1.312 | 33.33 | 0.563 | 14.30 | |
| 2.250 | 0571 | 3.238 | 82.25 | 2.287 | 58.10 | 3.878 | 98.50 | 1.312 | 33.33 | 0.563 | 14.30 | |
| 60 | 0600 | 3.343 | 84.90 | 2.402 | 61.00 | 3.976 | 101.00 | 1.312 | 33.33 | 0.563 | 14.30 | |
| 2.375 | 0603 | 3363.000 | 85.43 | 2.413 | 61.30 | 3.996 | 101.50 | 1.312 | 33.33 | 0.563 | 14.30 | |
| 2.500 | 0635 | 3.488 | 88.60 | 2.539 | 64.50 | 4.114 | 104.50 | 1.312 | 33.33 | 0.563 | 14.30 | |
| 65* | 0650 | 3.539 | 89.90 | 2.598 | 66.00 | 4.173 | 106.00 | 1.312 | 33.33 | 0.563 | 14.30 | |
| 2.625 | 0666 | 3.613 | 91.78 | 2.661 | 67.60 | 4.272 | 108.50 | 1.312 | 33.33 | 0.563 | 14.30 | |
| 2.750 | 70 | 0698 | 3.736 | 94.90 | 2.795 | 71.00 | 4.370 | 111.00 | 1.312 | 33.33 | 0.563 | 14.30 |
| 2.875 | 0730 | 3.863 | 98.13 | 2.913 | 74.00 | 4.508 | 114.50 | 1.312 | 33.33 | 0.563 | 14.30 | |
| 75* | 0750 | 3.933 | 99.90 | 2.992 | 76.00 | 4.567 | 116.00 | 1.312 | 33.33 | 0.563 | 14.30 | |
| 3.000 | 0762 | 3.926 | 99.71 | 3.039 | 77.20 | 5.547 | 115.50 | 1.312 | 33.33 | 0.563 | 14.30 | |
| 3.125* | 0794 | 4.051 | 102.89 | 3.165 | 80.40 | 4.705 | 119.50 | 1.312 | 33.33 | 0.563 | 14.30 | |
| 80* | 0800 | 4.130 | 104.90 | 3.189 | 81.00 | 4.764 | 121.00 | 1.312 | 33.33 | 0.563 | 14.30 | |
| 3.250* | 0825 | 4.232 | 107.50 | 3.295 | 83.70 | 4.862 | 123.50 | 1.350 | 34.30 | 0.563 | 14.30 | |
| 85* | 0850 | 4.327 | 109.90 | 3.386 | 86.00 | 4.961 | 126.00 | 1.350 | 34.30 | 0.563 | 14.30 | |
| 3.375* | 0857 | 4.364 | 110.85 | 3.421 | 86.90 | 5.020 | 127.50 | 1.350 | 34.30 | 0.563 | 14.30 | |
| 3.500* | 0889 | 4.488 | 114.00 | 3.539 | 89.90 | 5.138 | 130.50 | 1.350 | 34.30 | 0.563 | 14.30 | |
| 90* | 0900 | 4.508 | 114.50 | 3.583 | 91.00 | 5.138 | 130.50 | 1.350 | 34.30 | 0.563 | 14.30 | |
| 3.625* | 0921 | 4.610 | 117.10 | 3.673 | 93.30 | 5.256 | 133.50 | 1.350 | 34.30 | 0.563 | 14.30 | |
| 95* | 0950 | 4.720 | 119.90 | 3.780 | 96.00 | 5.354 | 136.00 | 1.350 | 34.30 | 0.563 | 14.30 | |
| 3.750* | 0953 | 4.738 | 120.35 | 3.791 | 96.30 | 5.374 | 136.50 | 1.350 | 34.30 | 0.563 | 14.30 | |
| 100* | 1000 | 4.917 | 124.90 | 3.976 | 101.00 | 5.551 | 141.00 | 1.350 | 34.30 | 0.563 | 14.30 | |
| 4.000* | 1016 | 4.988 | 126.70 | 4.039 | 102.60 | 5.610 | 142.50 | 1.350 | 34.30 | 0.563 | 14.30 | |
| 4.250* | 1079 | 5.238 | 133.05 | 4.291 | 109.00 | 5.886 | 149.50 | 1.350 | 34.30 | 0.563 | 14.30 | |
| 4.500* | 1143 | 5.488 | 139.40 | 4.539 | 115.30 | 6.122 | 155.50 | 1.350 | 34.30 | 0.563 | 14.30 | |
| 5.000* | 1270 | 6.488 | 164.80 | 5.039 | 128.00 | 7.382 | 187.50 | 1.417 | 36.00 | 0.630 | 16.00 | |
| 5.500* | 1397 | 6.988 | 177.50 | 5.539 | 140.70 | 7.894 | 200.50 | 1.417 | 36.00 | 0.630 | 16.00 | |
Technical Data Sheet
The Vulcan Seals Type 191 Wilo® range is two sizes of elastomeric bellows seals with boot-mounted stationaries to suit common Wilo® centrifugal pumps, utilized in heating circulation applications.
Vulcan Seals stocks the brass shaft sleeves the Vulcan Seals Type 191 Wilo® seals are mounted onto, and gasket sets for the 32mm size pumps are also available.
We also offer other standard range seals, such as 17mm Type 19B, and 18mm, 24mm, or 32mm Type 192B seals, to suit Wilo® pumps.
Technical Data Sheet
The Vulcan Seals Type 191 Wilo® range is two sizes of elastomeric bellows seals with boot-mounted stationaries to suit common Wilo® centrifugal pumps, utilized in heating circulation applications.
Vulcan Seals stocks the brass shaft sleeves the Vulcan Seals Type 191 Wilo® seals are mounted onto, and gasket sets for the 32mm size pumps are also available.
We also offer other standard range seals, such as 17mm Type 19B, and 18mm, 24mm, or 32mm Type 192B seals, to suit Wilo® pumps.
Our products are expertly designed to meet and exceed reliability, compliance and performance expectations.
